haxeui-html5 is the pure HTML5 backend for HaxeUI. It has no other framework dependency except haxeui-core itself and outputs a DOM tree.

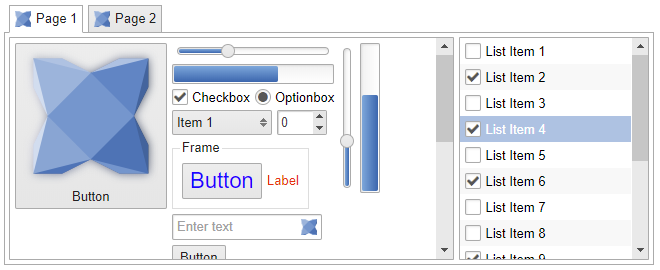

haxeui-html is considered a "hybrid" backend, this is because it can create composite components as well as native components (native to the browser), where they are available, in the same GUI (as pictured below).


haxeui-html5 has a dependency to haxeui-core, and so that too must be installed. Once haxeui-core is installed, haxeui-html5 can be installed using:

haxelib install haxeui-html5


The simplest method to create a new HTML5 application that is HaxeUI ready is to use the HaxeUI command line tools. These tools will allow you to start a new project rapidly with HaxeUI support baked in. To create a new skeleton application using haxeui-html5 create a new folder and use the following command:

haxelib run haxeui-core create html5

If however you already have an existing application, then incorporating HaxeUI into that application is straightforward:

Haxe build.hxml

If you are using a command line build (via a .hxml file) then add these two lines:

-lib haxeui-core
-lib haxeui-html5

If you are using an IDE, like Haxe Develop, add these lines via the project settings window (or the appropriate place for your IDE of choice).

Toolkit initialisation and usage

Initialising the toolkit requires you to add this single line somewhere before you start to actually use HaxeUI in your application:


Once the toolkit is initialised you can add components using the methods specified here.

HTML5 specifics

As well as using the generic Screen.instance.addComponent, it is also possible to add components directly to any other DOM node: the haxeui-html5 backend exposes a special element property for this purpose. Eg:


Initialisation options

The configuration options that may be passed to Tookit.init() are as follows:

    // where 'Screen' will place components (defaults to the document body)
    container: js.Browser.document.getElementById("myContainer")

Native components

HTML5 supports various native versions of components, and therefore so does HaxeUI. There are a few different ways to do this:

Using a theme (applies to all relevant components)

Toolkit.theme = "native"; // will try to use native components where possible

Using haxe code (applies to single component)

var button:Button = new Button();
button.native = true; // this component alone will be native

Using an inline style (applies to single component)

<button text="Native" style="native:true;" />

Using CSS (applies to groups of components)

.button, #myNativeButton, .myNativeStyle {
    native: true;
